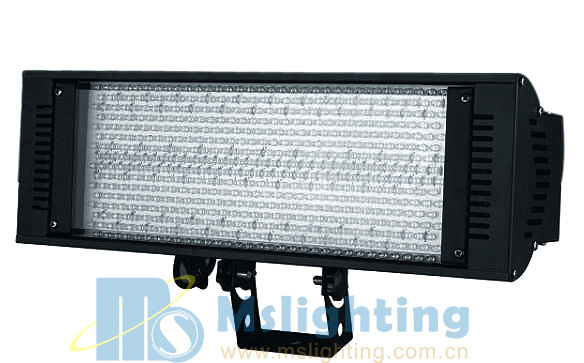

Zoom LED strobe light's picture

LED strobe light

Channels: 6
Body Size:L480*W220*H160 mm
N.W: 4.5 Kg
Class: LED Stage Light LED Light
.:Feature:.

Voltage: AC 110V/220V 50Hz/60Hz Power: 30W Light source: LED red,green,blue

Item No. : LED 07A (570*Ø5)
Light Source: 570LEDS(190R/ 190B /190G)
LED current: 20mA
Power Consumption: 30W
Light Projecting Distance: 15-25M
Packing Dimension: L530*W200*H280 mm
Gross Weight: 4.00 (Kg)
Specification:
Housing Material: Iron
Housing Color: Black
Aperture Cover: Aluminum
Operating voltage: 90-254V AC
Power:Switch Power Supply
Control Mode: Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization
DMX Channel: 6CH
Control panel: Dip Switch
Connector: 3-PinXLR (In and Out)
LED Life Time: 80000-100,000 hours
Beam Angle: 250/300/450/600
Operating Temperature: -200C-+450C
Compatibility:
1. Color Range 16.7 million additive RGB colors; continuously variable intensity (256*256*256=16777216)
2. Dimming 0-100%with regulated constant color control
3. Strobe: 10 Flashed per second (any color)
4. Function: it is max mix color, color change, colors gradual change, flash, speed/luminance the adjustable, and save function
6. 6CH DMX Value
CH 1 General dimmer (1-255, from dart to light)
CH 2 Red (1-255, Dimmer,from dart to light)
CH 3 Green (1-255, Dimmer,from dart to light)
CH 4Blue (1-255, Dimmer,from dart to light)
CH 5 Strobe & Color change/ color gradual change open
CH 6 Strobe & Color change& color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast)
7. Thermal:
Maximum ambient temperature: 400 C
Maximum housing temperature: 600 C
