.:Product Show:.

Product >> LED Light >> LED Effect Light >> LED-1001(RGB)

Zoom LED-1001(RGB)'s picture

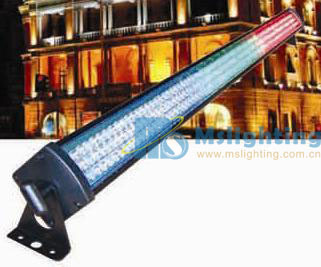

LED-1001(RGB)

Channels: 13
Body Size:L1070*W120*H86 mm
N.W: 2.3 Kg
Class: LED Effect Light LED Light

video

.:Feature:.

Specification:
Input power: AC 100-240V/50-60Hz
Total Power:50W
LEDs: 252pcs(Red/108pcs,Blue/72pcs,Green/72pcs) (Angle:30)
House size:1070*65*86mm
Carton size: 1080*120*115mm/pce
N.W:2.3kg
G.W: 3.0Kg
Shipping size:1090*390*260mm/carton (6pcs/carton)
G.W: 20Kg/carton

DMX Channels
CH 1: Function selecting
0-10: Dimmer (CH2-CH 13 Dimmer valid)
11-51: Strobe (CH2-CH 13 Dimmer valid)
52-91: Light in and light out (CH2-CH 13 Dimmer invalid)
92-131: Auto color change (CH2-CH 13 Dimmer invalid)
132-147: Chase 1
148-164: Chase 2
165-181: Chase 3
182-198: Chase 4
199-215: Chase 5
216-232: Chase 6
233-255: Chase 1 - Chase 6
CH 2: All Red dimmer
CH 3: All Green dimmer
CH 4: All Blue dimmer
CH 5-CH 13:0-255 are the adjustable brightness from 1 to segment 3 in red,green,and blue color.
Working place:Indoor
Temperature:-20⁰C - +45⁰C
Humidity:0%-90%.
