.:Product Show:.

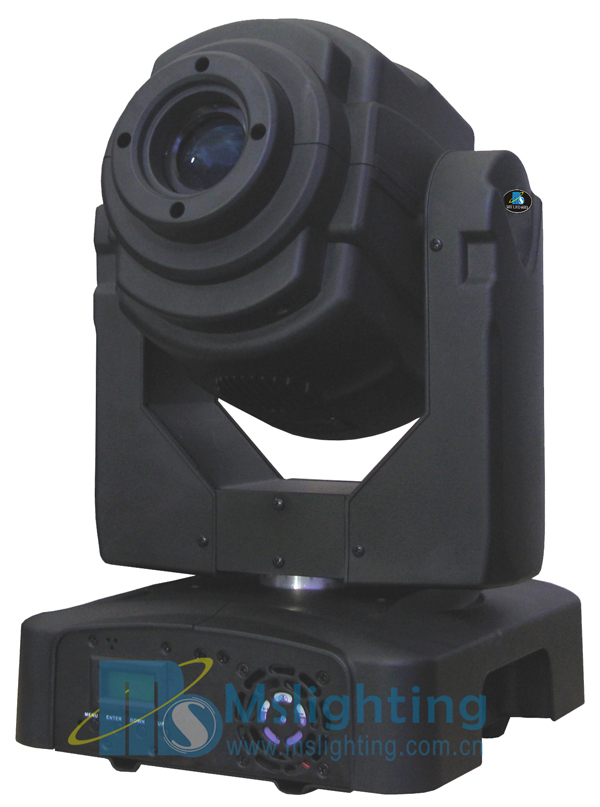

Zoom MH LED 60D's picture

MH LED 60D

Channels: 14
Body Size:L295*W280*H485MM mm
N.W: 14 Kg
Class: LED Moving Head Light LED Light
.:Feature:.

Voltage:AC100-240V 50/60Hz Rated power:150W Light Source:1PCS(60WLED) 13.5A Control mode:DMX 512/Master-slave / Auto/Custom/Sound Max. ambient Temp:45 weight:14KG

Model:MH LED 60D/MH LED 60D1(With Wreless Control)
8 colors + white+ Rainbow effect at variable speeds.
Variable electronic dimmer 0-100%, 1-20 flashes/s, high speed variable electronic strobe effect.
PAN 4500 , Tilt 2700,  Pan/ Tilt speed adjustable, movement smooth and fluent.
Precise adjustment on horizontal and vertical position, speed ajustable. Two motors motivate on both pan and tilt movement.
Automatic pan/ tilt correction, automatic electronic orientation.
Gobo wheel 1:
   9 gobos + open, Gobo shake, Gobo wheel spin at variable speeds.
Gobo wheel 2:
   Indexed, rotating gobo wheel with gobo shake7 slot-n-lock gobos + open, 2 glass,  5metal. Gobo wheel spin at variable speeds.
3-facet rotating prism.
LCD display.
255 user-programmable steps without DMX controller.
Move-in-black for pan/tilt.
Reset to factory settings option.
User-selectable basic or advanced operating modes.

Easy access door for gobo change.
Pattern internal light rotating function, freely adjusting fast , low speed , clockwise and anticlockwise.
Built-in automated programs .
Built-in sound activated programs.
Built-in over heat protection and high voltage protection.
Cooling: Forced air convection
Flame-retardant plastic housing.
Compatible with DMX 512 international digital signal.
According to various kinds of safety standards; IP20 protect level; the cable accords to the CE20/22 standard.




  Hits:3071   Date: 2010-8-10   PrintClose
