.:Product Show:.
Zoom MHS 575A's picture

MHS 575Aspot

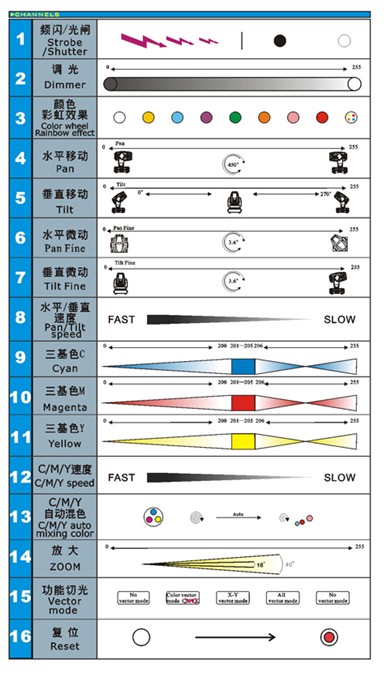

Channels: 16
Body Size:L545*W535*H675 mm
N.W: 37 Kg
Class: 575W Moving-Head light
.:Feature:.

MSR 575/2,20CH moving head spot

Model: MHS 575A/MHS 575A1(With Wreless Control)
•tical System: Prism-emllipsoid parabolic reflector bowls and fresnel thread-efficient optical system components
•Electronic focal variation output angle (150, 180, and 220)
Two-color wheel:
•color wheel 1: 9 color + open, two-way roller-color effect
•Color wheel 2: 6 color + open +high/low temperature +UV
2 separate gobo wheels:
•6 rotating interchangeable and index able gobos open position.
•9 fixed gobos + open position with gobo shake function, roto-gobo effect.
•Motorized stepless iris.
•High-speed rotating 3 facet prism.
Motorized
•Multi-Step-Zoom with three different apertures:15, 18 and 22.
•Remotely controllable motorized focus.
•Combined mechanical dimmer/shutter.
•Smooth micro-step driven dimming, Variable strobe 1-10 flashes/sec
•Preprogrammed macros with variable/random pulse effect.
•Remotely controllable fan speed.
•Pan movement range 0-530,
•Tilt movement range 0-280;
•Selectable 8 or 16 bit Pan/Tilt movement resolution.
•Automatic Pan/Tilt position correction.
•Addressing, personality setting and effects calibration via 4-digit LED control panel. •Stand alone and Master/Slave operation, On-board programming.
•3 freely programmable programs(99-steps each).
•20 DMX control channels .
•Up to CE standard.
  Hits:4925   Date: 2008-10-15   PrintClose
