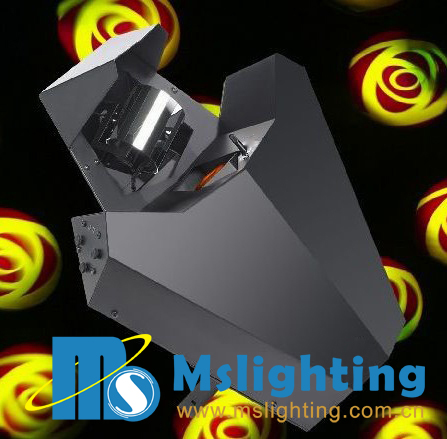

MS -250

Channels: 11

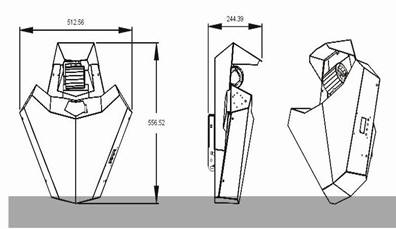

Body Size:552(L)* 516(W)*208(H) mm
N.W: 16 Kg
Class: Wizard Extreme Scan Light
.:Feature:.

• Voltage: AC220V 50HZ •Lamp:MSD250W •Power:300W •

Model:MS -250
Voltage:220V-240V 50-60HZ
Power:300W
Fuse:T6.3A/120V T3.15A/230V
Lamp:MSD 250W/2 discharge lamp
Color:7 Color+2 white + Starry Sky color
Gobo:13 gobo+1steal gobo wheel
Focus:Manual Focus
• 12 factory-designed macros that allow light shows to be created quickly with minimal programming
• Strobe effects
• Two independent color/gobo wheels
• Seven solid colors, eight-split colors, and two white positions
• 13 gobos plus open position
• A rotating mirror dish
• A rotating mirror drum with variable swivel angle
• Adjustable focus with rapid adjustment mechanism
• Mechanical shutter
• Multiple control options that enable a broad range of effects
The combination of mirror dish and mirror drum delivers over 80 individual the combination of mirror dish and mirror drum delivers over 80 individual light beams. A new glass reflector design offers enhanced light output.
Scanning: a unique rotating lens barrel, horizontal scans 180 degrees
Control Mode: DMX-512 signal control, music control
Display: LED display
Applicable range: bar, slow shake bar, KTV private rooms and other places
11CH DMX Channel value:
CH 1: Light, Strobe, Music trig, Reset
CH 2: Mirror dish
CH 3: Color
CH 4: Color shakes
CH 5: Gobo
CH 6: Gobo shake
CH 7: Mirror drum swivel (pan)
CH 8: Mirror drums rotation (tilt)
CH 9: Macros
CH 10: Mirror drums swivel (pan) speed
CH 11: Color and gobo speed
