.:Product Show:.

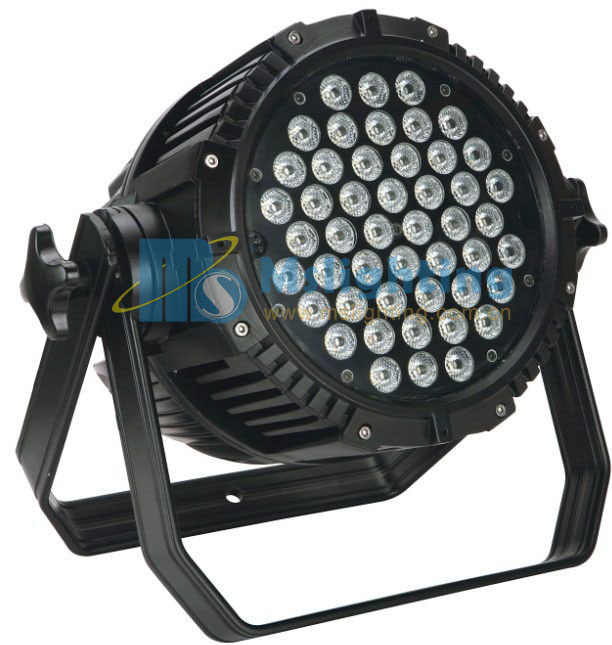

Zoom LED 1008 Waterproof's picture

LED 1008 Waterproof

Body Size:500*316*333 mm
N.W: 12.50 Kg
Class: LED Par Can LED Light
.:Feature:.

Item NO1:LED 1008/LED 1008-1(With Wreless Control)

Light Source:36*3W high power LED (12R, 12G, 12B)
LED current:680mA
Power Consumption:125W
Light Projecting Distance:40-45M
Item NO 2:LED 1008A/LED 1008A1(With Wreless Control)

Light Source: 48 * 1W high power LED(16R, 16G, 16B)
LED current: 320mA
Power Consumption: 56W
Light Projecting Distance: 35-40M
Item NO 3:LED 1008B/LED 1008B1(With Wreless Control)

Light Source: 48 * 3W high power LED(16R, 16G, 16B)
LED current: 680mA
Power Consumption: 160W
Light Projecting Distance: 50-80M
Item NO 4: LED 1008C/LED 1008C1(With Wreless Control)

Light Source: 54 * 1W high powerLED(18R, 18G, 18B)
LED current: 320mA
Power Consumption: 70W
Light Projecting Distance: 45-50M
Item NO 5: LED 1008D/LED 1008D1(With Wreless Control)

Light Source: 54 * 3W high power LED(18R, 18G, 18B)
LED current: 680mA
Power Consumption: 190W
Light Projecting Distance: 80-150M
Item NO 6:LED 1008E/LED 1008E1(With Wreless Control)

Light Source: 30* 3in1 RGB Lamp
LED current: 680mA
Power Consumption: 108W
Light Projecting Distance: 50-120M

Item NO 7:LED 1008F/LED 1008F1(With Wreless Control)

Light Source:30*5W RGB(WA)LED Lamp

Power Consumption: 180W

Item NO 8:LED 1008G/LED 1008G1(With Wreless Control)

Light Source:36*4W 4IN1 RGBW Lamp

Power Consumption: 180W

Item NO 9:LED 1008H/LED 1008H1(With Wreless Control)

Light Source:12*10W 4IN1 RGBW Lamp

Power Consumption: 150W

Item NO10:LED 1008I/LED 1008I-1(With Wreless Control)
Light Source:18*10W RGBW 4IN1 high power LED
LED current:680mA
Power Consumption:180W
Light Projecting Distance:40-45M


Item NO 11 :LED 1008J/LED 1008J1(With Wreless Control)
Light Source: 24 *10W RGBW 4IN1 high power LED
LED current: 320mA
Power Consumption: 240W
Light Projecting Distance: 35-40M


Item NO 12 :LED 1008K/LED 1008K1(With Wreless Control)
Light Source: 12 * 15W RGBWA 5IN1 high power LED
LED current: 680mA
Power Consumption: 180W
Light Projecting Distance: 50-80M


Specification:
Housing Material: Aluminum
Housing Color: Black/Silver White
Aperture Cover: PMMA
Operating voltage: 90-130V AC / 176-254V AC
Control Mode: Direct DMX 512, Master/slave. Stand alone.

Sound Activity, Sound activity synchronization
DMX Channel: 6CH/3CH
Control panel: Digital 4 characters alphanumeric
Connector: 3-PinXLR (In and Out)
LED Life Time: 80000-100,000 hours
Beam Angle: 250/300/450/600
IP Rating: Outdoor, Waterproof, IP 65
Operating Temperature: -200C-+450C
Packing Dimension: 500 x 316 x 333 (mm)
Gross Weight: 12.50 (Kg)
Compatibility:
1. Color Range 16.7 million additive RGB colors; continuously variable intensity (256*256*256=16777216)
2. Dimming 0-100%with regulated constant color control
3. Strobe: 10 Flashed per second (any color)
4. Function: it is max mix color, color change, colors gradual change, flash, speed/luminance the adjustable, and save function
5. 6channel Mode and 3channel Mode would change each other in every light
6. 6CH Mode DMX Value
CH 1 General dimmer (1-255, from dart to light)
CH 2 Red (1-255, Dimmer,from dart to light)
CH 3 Green (1-255, Dimmer,from dart to light)
CH 4Blue (1-255, Dimmer,from dart to light)
CH 5 Strobe & Color change/ color gradual change open
CH 6 Strobe & Color change& color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast)
7. 3CH Mode DMX Value
CH 1 Red (1-255, Dimmer,from dart to light)
CH 2 Green (1-255, Dimmer,from dart to light)
CH 3Blue (1-255, Dimmer,from dart to light)
8. Thermal:
Maximum ambient temperature: 400C
Maximum housing temperature: 600C
