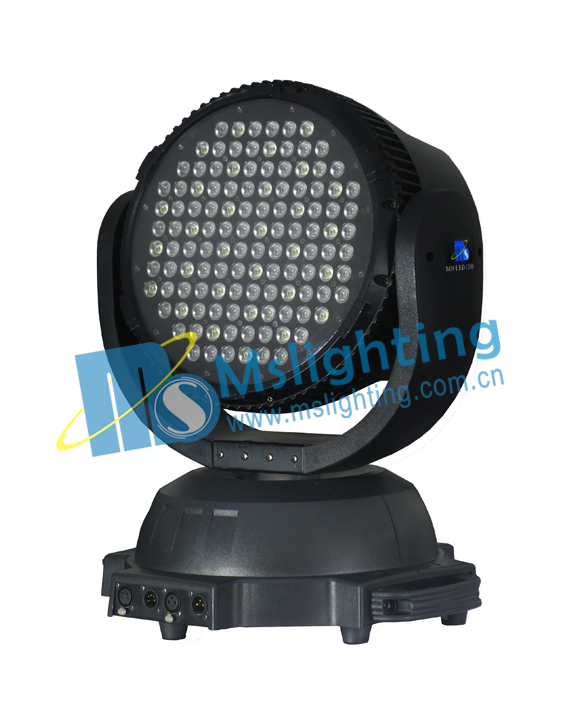

MH LED 120D/120E/61A/6015A

Channels: 13
Body Size:430 x 350 x 550 mm
N.W: 17.5 Kg
Class: LED Moving Head Light LED Light
.:Feature:.

Voltage :AC 90-130V/180V-245V, 50/60Hz Lamp:(RGB)40R+40B+40G /120*3IN1/ Rated Power:120W/360W/600W Lamp:((RGBW/A)30R+30B+30G+30W/30A Rated Power:150W/400W/600W Control Signal:DMX 512/Master-slave/ Auto/Custom/Sound Control Channels:12CH(RGB)/13CH(RGBW/A)Model:MH LED 120E/MH LED 120E1(With Wreless Control) Bulbs: 120*4W RGBW 4IN1 Power: 480W Channel: 13 CH, DMX512 channel control

Model:MH LED 120D/MH LED 120D1(With Wreless Control)
Bulbs: 120*1W (40 Red / 40 Green / 40 Blue)
Power: 120W
Channel: 12 CH, DMX512 channel control
Model:MH LED 120D/MH LED 120D1(With Wreless Control)
Bulbs: 120*3W (40 Red / 40 Green / 40 Blue)
Power: 360W
Channel: 12 CH, DMX512 channel control
Model:MH LED 120D/MH LED 120D1(With Wreless Control)
Bulbs: 120*5W (40 Red / 40 Green / 40 Blue)
Power: 600W
Channel: 12 CH, DMX512 channel control
Model:MH LED 120D/MH LED 120D1(With Wreless Control)
Bulbs: 120*3IN1
Power: 360W
Channel: 12 CH, DMX512 channel control
Model:MH LED 120D/MH LED 120D1(With Wreless Control)
Bulbs: 120*1W/3W/5W (30Red / 30Green /30 Blue/30W/30A)
Power: 150W/360W/600W
Channel: 13 CH, DMX512 channel control

Model:MHLED 120E/MHLED 120E-1(With Wreless Control)
Bulbs: 120*4W RGBW 4IN1
Power: 480W
Channel: 13 CH, DMX512 channel control

Model:MHLED 61A/MHLED 61A-1(With Wreless Control)
Bulbs: 61*10W RGBW 4IN1
Power: 610W
Channel: 12 CH, DMX512 channel control
Model:MHLED 6015A/MHLED 6015A-1(With Wreless Control)
Bulbs: 60*15W RGBW 5IN1
Power: 9000W
Channel: 15 CH, DMX512 channel control

Specification:

Voltage / frequency: 90V-130V/180-240V/50-60Hz
Control signal: DMX 512, in sets at the automatic procedure
Color: 16.7 million kinds of colors changes
Adjusts the light: 0-100 electron adjusts the light, various colors may alone move also may mix the color tone
Strobe: 1-25/second high speed strobe, but single color mixes the color strobe
Low power consumption
Super luminance, with the efficiency of ordinary power bulbs, rich and splendid color
DMX-512 control signal, 13 standard channels
The housing is made of streamline fashionable PC engineering plastic after once casting
Wide range super tiny smooth scanning, horizontal scanning angle reaches 4500 and vertical 2700 , the scanning precision reaches 8bit and 16bit, with smooth and precise positioning, additionally, the scanning speed is adjustable
Infinite RGB color mixed system
The light beam angle would choose from 60 - 600
High speed electronic strobe reaches 1-18 times/second
Total light adjustment control channel can control 3 main color channels simultaneously
The digital display on the control panel can be reversed for 180�� , applicable for horizontal or vertical use of moving head
With the functions of synchrony movement and music control
Meet CE standard, UL standard and GB7000.15-2000 standard.

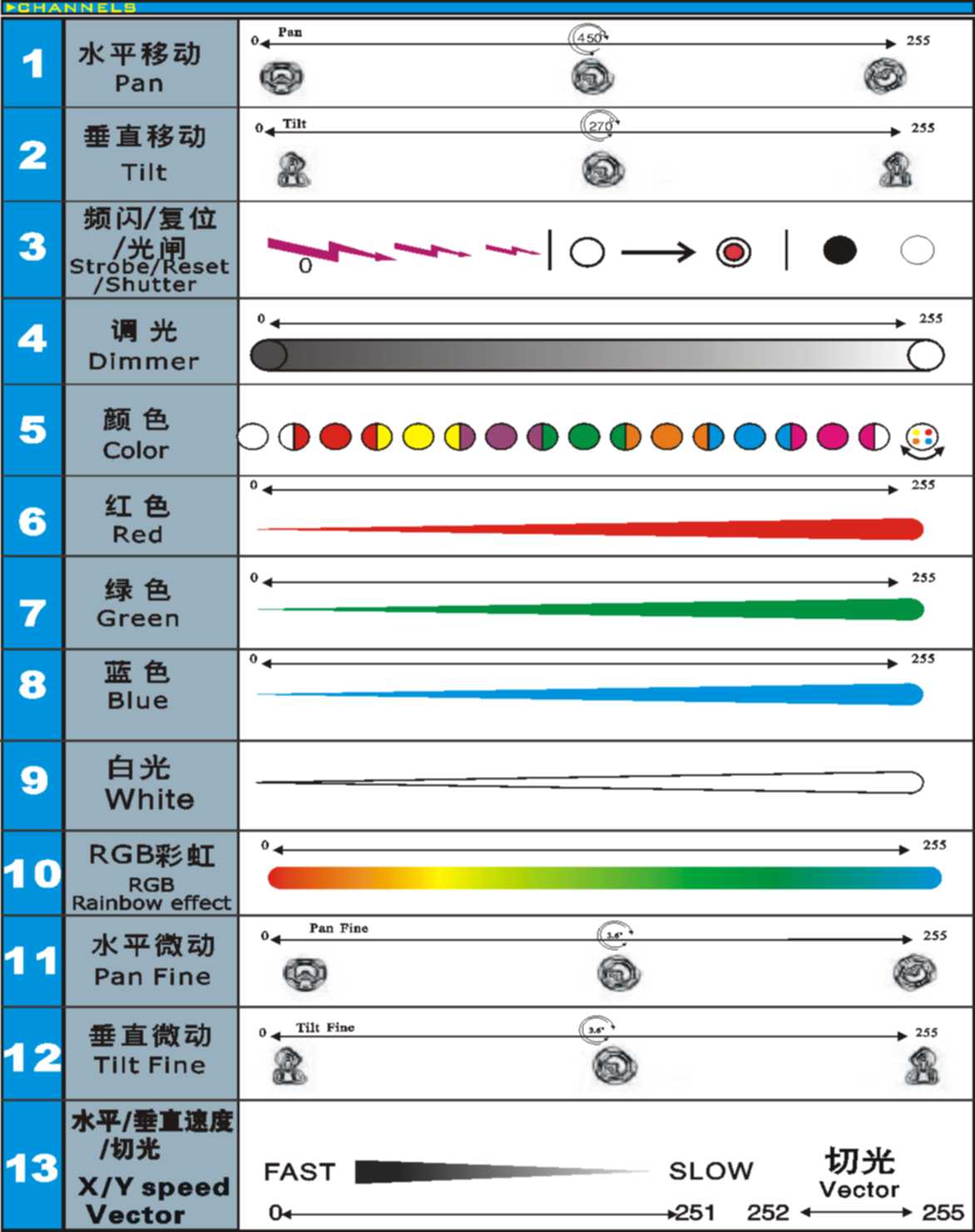

DMX 13CH:
CH1: X adjusting
CH2: Y adjusting
CH 3: Strobe/ Reset/ Shutter
CH 4: Dimmer
CH 5: Color
CH 6: RED color change
CH 7: GREEN color change
CH 8: BLUE color change
CH 9: White color change
CH10: RGB Rainbow Effect
CH11: X Fine
CH12: Y Fine
CH13: X/Y speed, Vector
